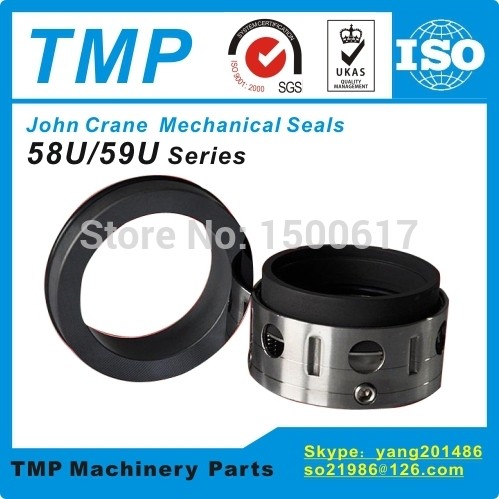

T59B-25mm JohnCrane Mechanical Seals (25*44*47.5mm)|Type 59B PTFE Wedge O-ring pusher Seal
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
T59B-25mm |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$1~$500 |
| Packaging Details: |
Industrial neutral packaging (Paper Box) |
| Delivery Time: |
1-3 day after Payment |
| Payment Terms: |
T/T,WU,Paypal,Alipay etc |
| Supply Ability: |
1~1000 pieces per month |
Contact Now
Detailed Product Description
| Standard Or Nonstandard: |
Standard |
Style: |
Mechanical Seal |
| Material: |
PTFE |
| T59B-25mm John Crane Mechanical Seals (25*44*47.5mm)|Type 59B PTFE Wedge O-ring pusher Seal for Shaft Size 25mm Pumps |
| Series | John Crane Seals Type 59B |
| Model Number | T59B-25mm |
| Shaft Size | 25 mm |
| Introduction | John Crane Type 59B Replace Seal O-ring pusher Seal: John Crane Type 58B/59B Multi Spring Mechanical Seal Rubber Pump Seal; Equivalent to: • John Crane 58B • AES Seal M04S • Burgmann BT-C5.KB • Sterling 259BS |
Application
Date | Operating range: • Shaft diameter: d/D = 18/22 … 95/100 mm (0.71"/0.87" ... 3.74"/3.94") • Pressure: Up to 62 bar (900 PSI), • Temperature: t = -30 °C … +260 °C (-22 °F … +536 °F) • Sliding velocity: vg = 25 m/s (5000 fpm) • Admissible axial movement: ±2.0 mm Materials: • Seal face: Carbon, Ceramic, Silicon Carbide • Elastomer: FKM • Metal parts: SS304, SS316 |
