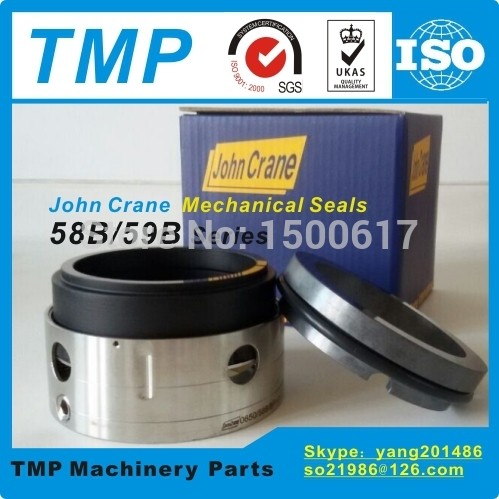

T59B-55mm JohnCrane Mechanical Seals (55*80*57.5mm)|Type 59B PTFE Wedge O-ring pusher Seal
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
T59B-55mm |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$1~$500 |
| Packaging Details: |
Industrial neutral packaging (Paper Box) |
| Delivery Time: |
1-3 day after Payment |
| Payment Terms: |
T/T,WU,Paypal,Alipay etc |
| Supply Ability: |
1~1000 pieces per month |
Contact Now
Detailed Product Description
| Standard Or Nonstandard: |
Standard |
Style: |
Mechanical Seal |
| Material: |
Silicone |
|
T59B-55mm John Crane Mechanical Seals (55*80*57.5mm)|Type 59B PTFE Wedge O-ring pusher Seal for Shaft Size 55mm Pumps |
|
Series |
John Crane Seals Type 59B |
|
Model Number |
T59B-55mm |
|
Shaft Size |
55 mm |
|
Introduction |
John Crane Type 59B Replace Seal O-ring pusher Seal:
John Crane Type 58B/59B Multi Spring Mechanical Seal Rubber Pump Seal;
Equivalent to:
• John Crane 58B
• AES Seal M04S
• Burgmann BT-C5.KB
• Sterling 259BS
|
Application
Date |
Operating range:
• Shaft diameter: d/D = 18/22 … 95/100 mm (0.71"/0.87" ... 3.74"/3.94")
• Pressure: Up to 62 bar (900 PSI),
• Temperature: t = -30 °C … +260 °C (-22 °F … +536 °F)
• Sliding velocity: vg = 25 m/s (5000 fpm)
• Admissible axial movement: ±2.0 mm
Materials:
• Seal face: Carbon, Ceramic, Silicon Carbide
• Elastomer: FKM
• Metal parts: SS304, SS316
|
