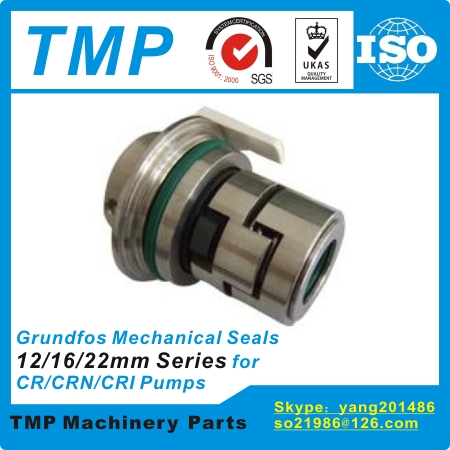

GLF-16 Grundfos Mechanical Seals for CR10/CR15/CR20 pumps with shaft size 16mm(GLF16) Single spring Cartridge Seals
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
GLF-16 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$1~$500 |
| Packaging Details: |
Industrial neutral packaging (Paper Box) |
| Delivery Time: |
1-3 day after Payment |
| Payment Terms: |
T/T,WU,Paypal,Alipay etc |
| Supply Ability: |
1~1000 pieces per month |
| Minimum Order Quantity: |
1 |
Contact Now
Detailed Product Description
| Highlight: |
Grundfos mechanical seals, Mechanical seals, Pump Mechanical seals |
| Grundfos Mechanical Seals for CR10/CR15/CR20 series pumps wih shaft size 16 mm |
| Series | 12/16/22mm |
ModelNumber | GLF-16 |
| Shaft Size | 16mm |
| Introduction | Apply for grundfos pump Apply for grundfos CR series pumps;
Balanced seal ;
Easy to replace without dismantling the pump part;
The cartridge seal used in the CR line combines the best features of standard seals, wrapped up in an ingenious cartridge design that provides unparalleledadvantages. All of these ensure extra reliability.
The durable seal is made from hardwearing materials which prevent downtime and prolong the lifetime of the seal. All axial movement has been eliminated, preventing wear of the shaft and rubber parts – a typical problem area for traditional seals. The cartridge seal is a balanced type seal, a fact which makes it less insensitive to pressure. |
Application
Date | Operating Conditions:
Shaft Size: 12mm 16mm 22mm
Pressure:≤1MPa
Speed:≤10m/s
Temperature:-40°C~ 150°C |
| Materials | Combined Materials:
Stationary Ring:Carbon/SIC/SSIC
Rotary Ring:SSIC/SIC/TC
Secondary Seal: NBR/FKM
Spring and Metal Part: SUS304/SUS316
|
