MG13-65 Burgmann Mechanical Seals MG13 Series for Shaft Size 65mm Pumps (65x93.5x80mm) Rub
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
MG13-65 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$1~$500 |
| Packaging Details: |
Industrial neutral packaging (Paper Box) |
| Delivery Time: |
1-3 day after Payment |
| Payment Terms: |
T/T,WU,Paypal,Alipay etc |
| Supply Ability: |
1~1000 pieces per month |
| Minimum Order Quantity: |
1 |
Contact Now
Detailed Product Description
| Standard Or Nonstandard: |
Standard |
Style: |
Mechanical Seal |
| Material: |
Rubber |
| Highlight: |
Burgmann mechanical seals, Mechanical seal, MG13 Seals |
|

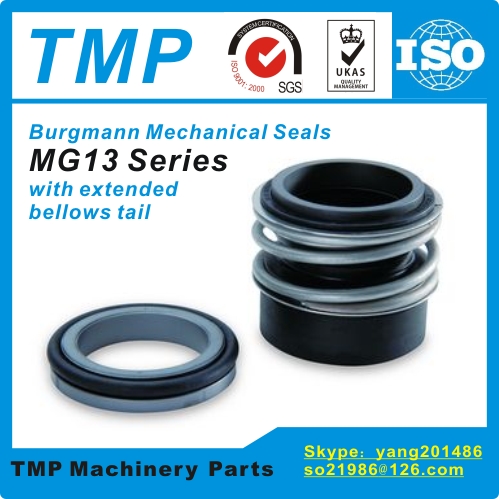

MG13-65 Burgmann Mechanical Seals MG13 Series for Shaft Size 65mm Pumps (65x93.5x80mm)
Rubber Bellow Seals
|
|
Series |
Burgmann Mechanical Seals MG13 Series |
|
Model Number |
MG13-65 |
|
Shaft Size |
65mm |
|
Introduction |
MG13:Dimensions, items and designationssame as for MG1, butwith an extended bellows tailto achieve thefitting length I1Naccording to EN12756 in combination with seat G6 or G60.
|
Application
Date |
OPERATING LIMITS
Temperature: -20°C~+120°C
Pressure: ≤1.2MPa
Speed: ≤10m/s
Equivalent to:
• Burgmann MG13 seal
• Flowserve Pac-Seal 193
• Hecker HN 410NU
• Roten L3N
|
|
Materials |
• Stationary Ring(Ceramic/SiC/TC)
• Rotary Ring(Carbon/SiC/TC)
• Secondary Seal(NBR/EPDM/FKM)
• Spring & Other Parts(SUS304/SUS316) |
