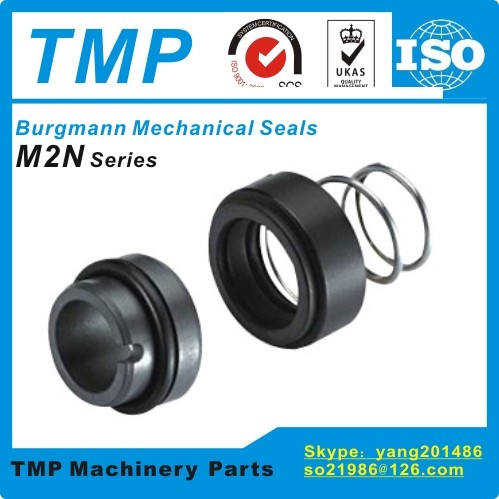

M2N-24 Burgmann Mechanical Seals(Shaft Size:24mm) |M2N Series for water Pumps
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
M2N-24 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
1-1000 |
| Packaging Details: |
Industrial Neutral Packing |
| Delivery Time: |
10 days |
| Payment Terms: |
T/T |
| Supply Ability: |
1000 pcs/month |
Contact Now
Detailed Product Description
| Standard Or Nonstandard: |
Standard |
Style: |
Mechanical Seal |
| Material: |
Silicone |
|
M2N-24 Burgmann Mechanical Seals(Shaft Size:24mm) |M2N Series Single Spring Unbalanced Seals for water Pumps |
|
Series |
Burgmann Mechanical Seals M2N |
|
Model Number |
M2N-24 |
|
Shaft Size |
24mm |
|
Introduction |
Single seal
Unbalanced
Conical spring rotating
Dependent on direction of rotation
Advantages:
Economical seal solution
No damage of the shaft by set screws
Short installation length possible (G16)
Recommended applications:
Pulp and paper industry
Water and waste water technology
Building services industry
Water pumps
Heating circulation pumps
|
Application
Date |
OPERATING LIMITS
Temperature: -20°C~+180°C
Pressure: ≤1MPa
Speed: ≤15m/s
|
|
Materials |
• Stationary Seat(SiC/99%Ceramic)
• Rotary Ring(Resin Carbon)
• Secondary Seal (NBR/EPDM/VITON/PTEE)
• Spring & Other Parts(SUS304/SUS316)
|
|
