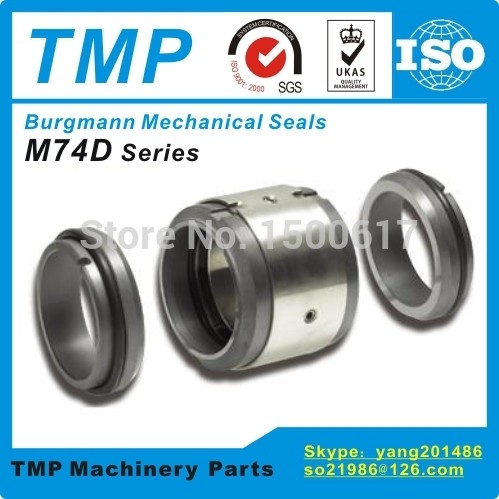

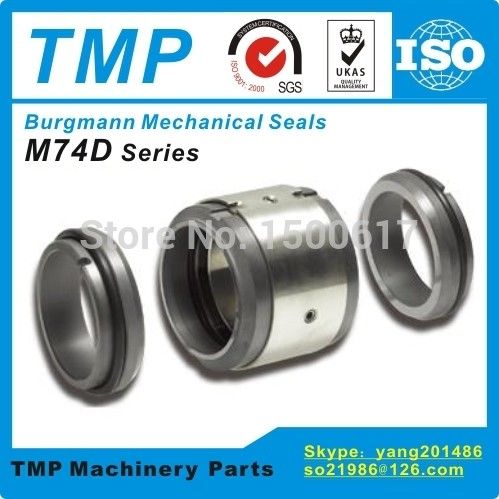

M74D-40 Burgmann Mechanical Seals (40x57x70mm) |M74-D Multiple springs Unbalanced Seals
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
M74D-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$1~$500 |
| Packaging Details: |
Industrial neutral packaging (Paper Box) |
| Delivery Time: |
1-3 day after Payment |
| Payment Terms: |
T/T,WU,Paypal,Alipay etc |
| Supply Ability: |
1~1000 pieces per month |
Contact Now
Detailed Product Description
| Standard Or Nonstandard: |
Standard |
Style: |
Mechanical Seal |
| Material: |
Silicone |
|
M74D-40 Burgmann Mechanical Seals (40x57x70mm) |M74-D Multiple springs Unbalanced Seals for Shaft Size 40mm Pumps |
|
Series |
Burgmann Mechanical Seals M74-D |
|
Model Number |
M74D-40 |
|
Shaft Size |
40 mm |
|
Introduction |
Double seal;
Unbalanced;
Independent direction of rotation;
Multiple springs;
Double seals in the M74D series have the same design-features as the “M7“ family of single seals (easy-to-replace seal faces, etc.). Apart from the installation length of the drive collar, all fittingdimensions (d1 <100 mm) conform with EN 12756.
|
Application
Date |
Operation limits:
shaft size: 18-200mm
Temperature: -20°C~+180°C
Pressure: ≤1.6MPa
Speed: ≤20m/s
|
|
Materials |
Burgmann Multi-Spring mechanical Seals Material
Stationary Ring (Carbon/SiC/TC)
Rotary Ring (SiC/TC/Carbon)
Secondary Seal (FKM/PTFE+FKM)
Spring & Other Parts (SS304/SS316)
|
|
