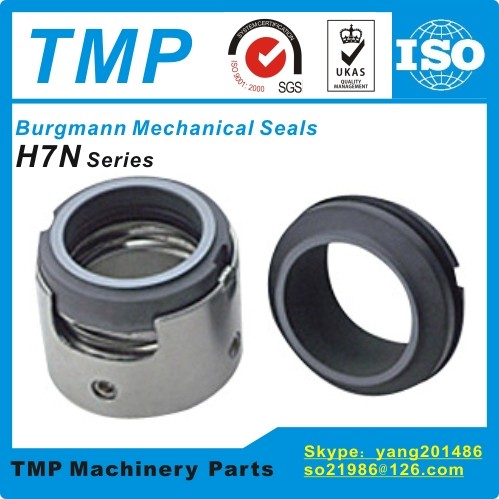

H7N-55 Burgmann Mechanical Seals (55x81x57.5mm) |H7N Series balanced Seals with O-ring
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
TLANMP |
| Certification: |
ISO 9001:2005 |
| Model Number: |
H7N-55 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$1~$500 |
| Packaging Details: |
Industrial neutral packaging (Paper Box) |
| Delivery Time: |
1-3 day after Payment |
| Payment Terms: |
T/T,WU,Paypal,Alipay etc |
| Supply Ability: |
1~1000 pieces per month |
Contact Now
Detailed Product Description
| Standard Or Nonstandard: |
Standard |
Style: |
Mechanical Seal |
| Material: |
Silicone |
|
H7N-55 Burgmann Mechanical Seals (55x81x57.5mm) |H7N Series balanced Seals with O-ring for Pumps (Shaft Size:55mm) |
|
Series |
Burgmann Mechanical Seals H7N |
|
Model Number |
H7N-55 |
|
Shaft Size |
55mm |
|
Introduction |
Single seal
/Balanced
/Independent of direction of rotation;
The H7N mechanical seal range is designed for universal application and the interchangeable parts concept is ideal for stock rationalisation. The seal faces are loosley inserted and can be easily exchanged, the thrust ring is retained by the drive lugs preventing the springs falling out. New: H7N with Super-Sinus spring.
|
Application
Date |
OPERATING LIMITS
Temperature: -20°C~+220°C
Pressure: ≤2.5MPa
Speed: ≤20m/s
|
|
Materials |
Material
• Stationary Ring(Carbon/SiC/TC)
• Rotary Ring(SiC/TC/Carbon)
• Secondary Seal(FKM/PTFE+FKM)
• Spring & Other Parts(SUS304/SUS316)
|
